About Dryer Cylinder Paper Mill Machinery

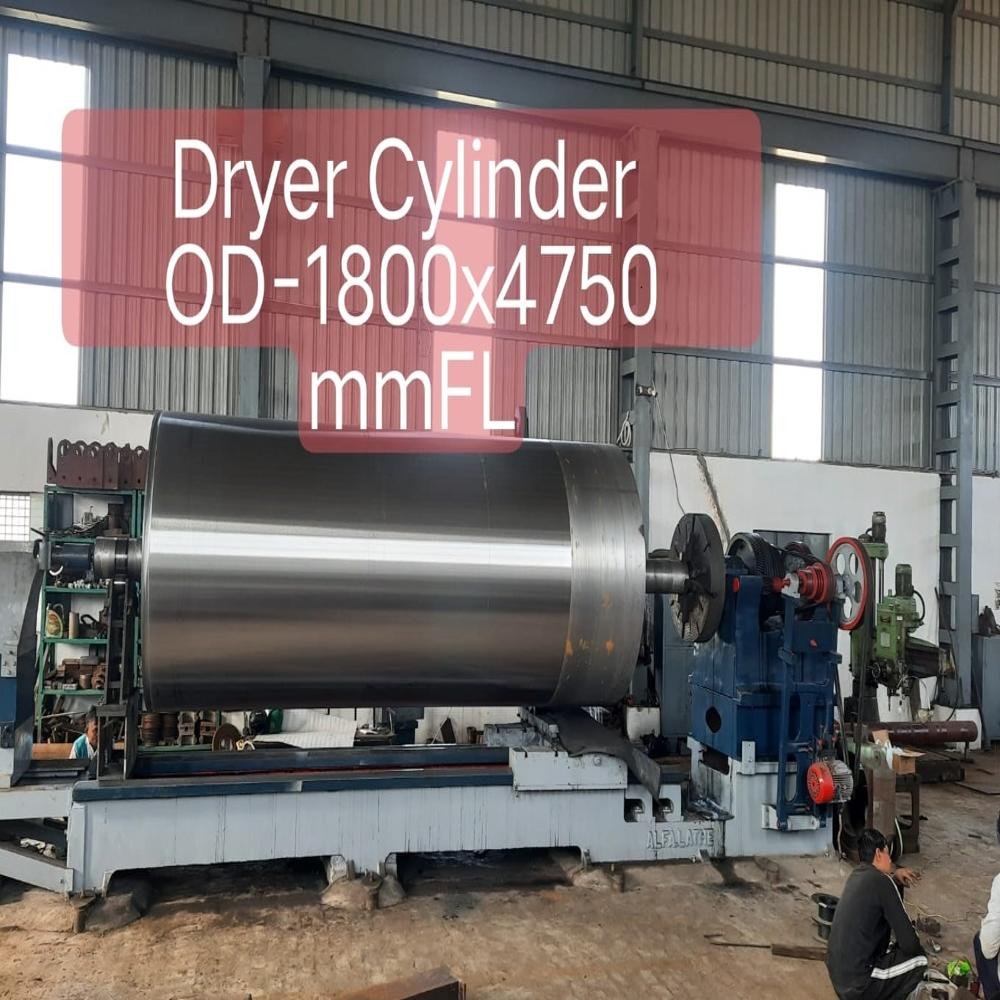

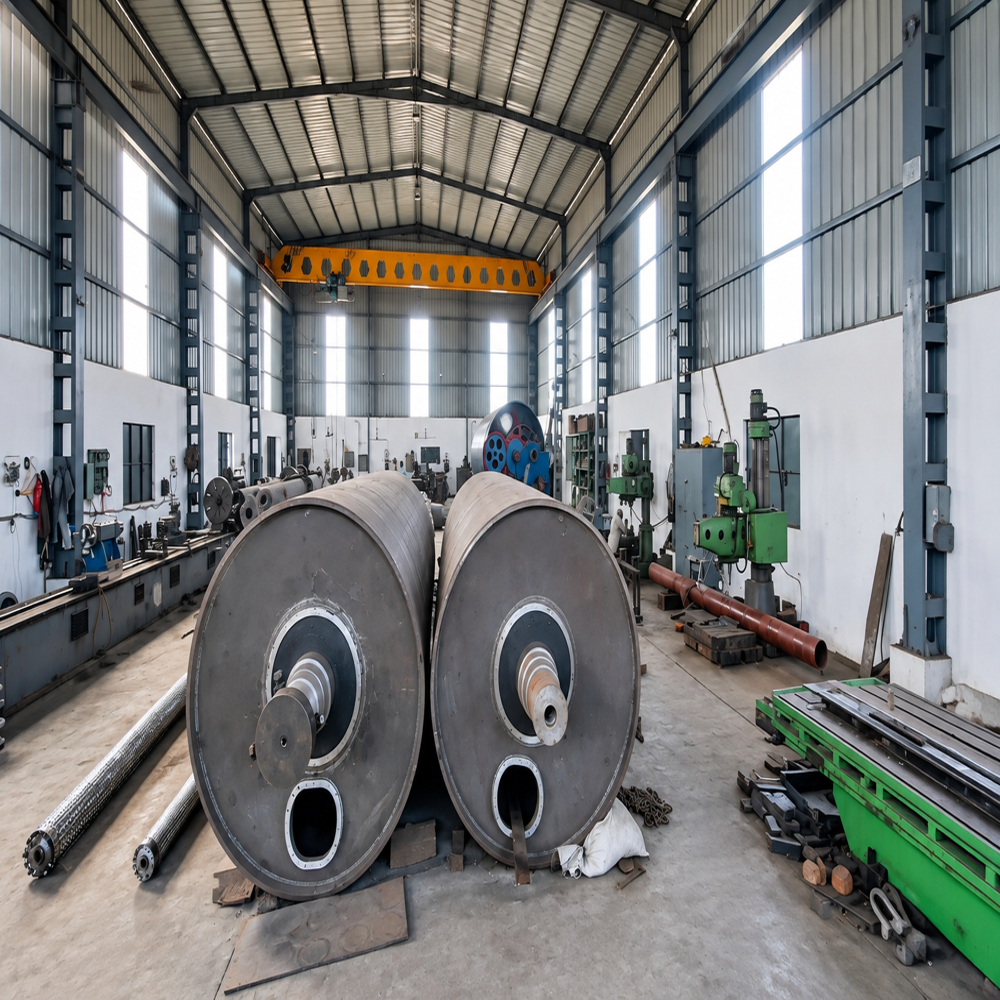

DRYER CYLINDER
1. DESCRIPTION
M.S. Fabricated Dryer Cylinder is designed for efficient and uniform drying of paper through steam heating. The cylinder is manufactured from high-quality mild steel plates and is suitable for continuous operation in paper manufacturing plants.
2. TECHNICAL SPECIFICATIONS
| Description |
Specification |
| Equipment |
Dryer Cylinder |
| Type |
M.S. Fabricated |
| Material |
Mild Steel (M.S.) |
| Outside Diameter (OD) |
1200 mm / 1500 mm / 1800 mm |
| Face Length |
As per requirement |
| Heating Medium |
Steam |
| Design Pressure |
As per requirement |
| Pressure Test |
10kg/cm |
| Construction |
Heavy-Duty Fabricated |
| Surface Finish |
Precision Machined (Mirror Finish) |
| Application |
Paper Drying |
| Drive Arrangement |
As per requirement |
3. CONSTRUCTION
The dryer cylinder is fabricated from high-quality M.S. plates with a robust construction to withstand the required operating pressure and temperature.
The cylinder shell, end plates and journals are designed to provide the necessary strength and rigidity. All critical surfaces are properly machined to ensure dimensional accuracy and smooth operation.
4. PRESSURE TESTING
The fabricated dryer cylinder is subjected to a hydrostatic pressure test at 1015 kg/cm, as specified, to check its structural integrity and pressure tightness.
5. FEATURES
- Heavy-duty M.S. fabricated construction.
- Available in 1200 mm, 1500 mm and 1800 mm outside diameters.
- Designed for steam-heated paper drying applications.
- Precision-machined surfaces for smooth operation.
- Robust construction for continuous industrial operation.
- Hydrostatic pressure testing as specified.
6. APPLICATION
Suitable for paper machines used in the manufacturing of Kraft Paper, Test Liner, Writing & Printing Paper and other paper grades.
Engineered for Superior Heat TransferDesigned with a mirror-polished surface and uniform shell thickness, this dryer cylinder maximizes contact heat transfer, significantly enhancing the paper drying process. The advanced anti-corrosion treatment further extends its service life under challenging industrial conditions.
Rigorous Testing and On-site InstallationEvery unit undergoes hydraulic and non-destructive inspections to assure safety and performance. Installation is supported through on-site supervision, ensuring seamless integration into your mill's existing setup for reliable ongoing operation.
Low Maintenance and Flexible OperationBenefit from a durable, low-maintenance dryer cylinder that supports both manual and automated control systems. Its capacity and custom coating options make it ideal for various industrial paper manufacturing requirements.
FAQ's of Dryer Cylinder Paper Mill Machinery:
Q: How is the dryer cylinder for paper mills installed?
A: Installation is conducted with on-site supervision provided by experienced technicians, ensuring correct alignment and integration within your paper mill's existing system for optimal performance.
Q: What is the main advantage of the mirror-polished surface finish on this cylinder?
A: The mirror-polished finish ensures superior heat transfer efficiency, which results in faster and more uniform drying of paper, thereby improving product quality and production speed.
Q: When should inspection and maintenance be performed on the dryer cylinder?
A: Although the cylinder requires minimal maintenance, routine inspections should follow your mill's maintenance schedule. Key times include after initial installation, post-production cycles, and according to the manufacturer's guidelines.
Q: Where can this dryer cylinder be applied?
A: This dryer cylinder is specifically developed for industrial paper mill applications, suitable for large-capacity paper manufacturing facilities seeking consistent drying performance and robust reliability.
Q: What is involved in the quality testing process?
A: Each cylinder undergoes comprehensive hydraulic and non-destructive testing to verify mechanical integrity, safety, and adherence to ISO-certified manufacturing standards before dispatch.
Q: How does anti-corrosion treatment benefit the operation of the dryer cylinder?
A: The anti-corrosion treatment shields the cylinder from industrial humidity and processing chemicals, significantly prolonging its lifespan and reducing downtime due to maintenance or replacement.
Q: What control systems are compatible with this dryer cylinder?
A: The dryer cylinder supports both manual and automated control options, giving mills the flexibility to integrate it according to their specific operational requirements.
