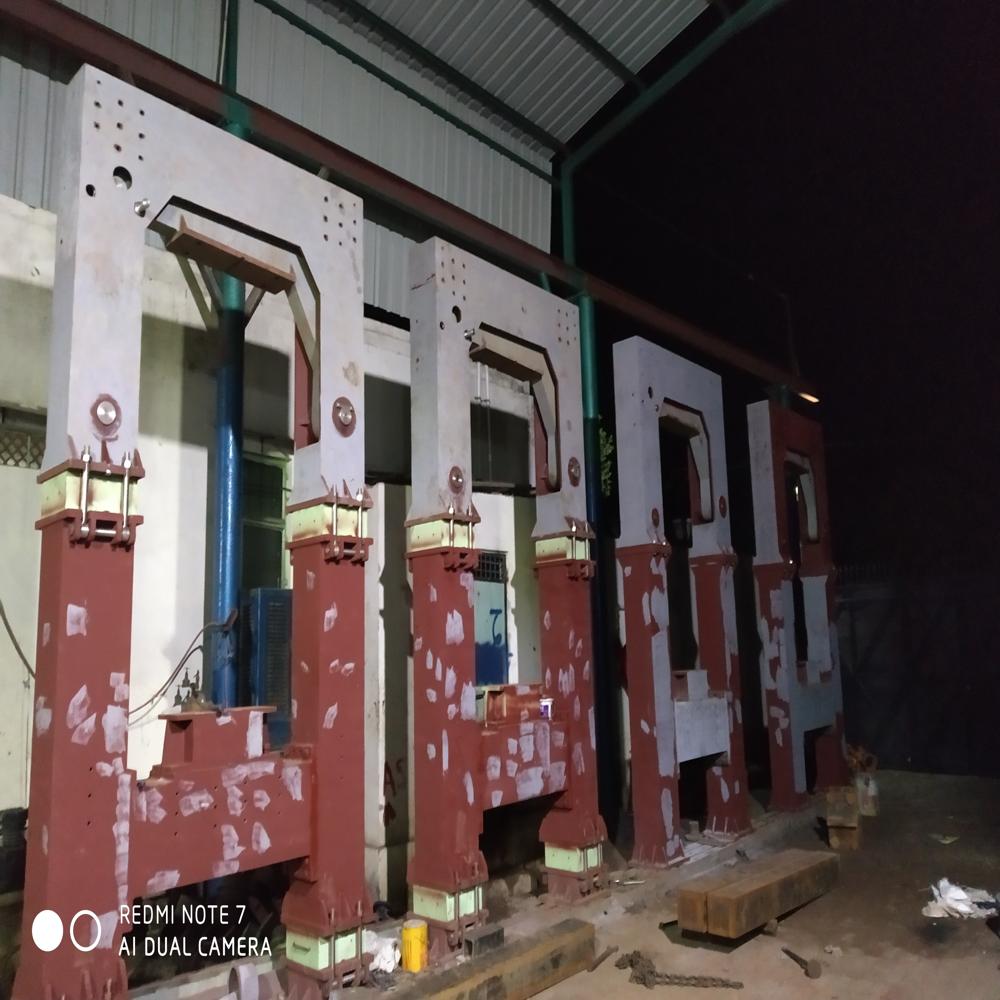

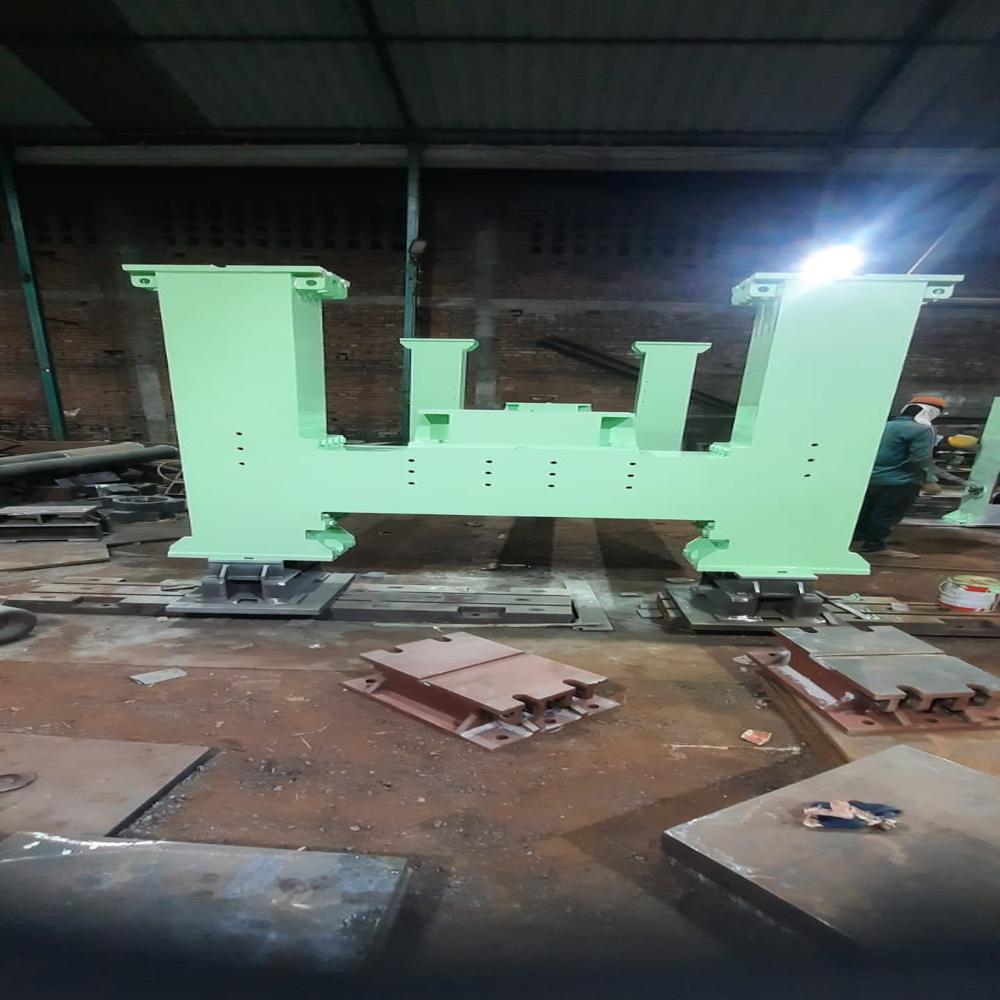

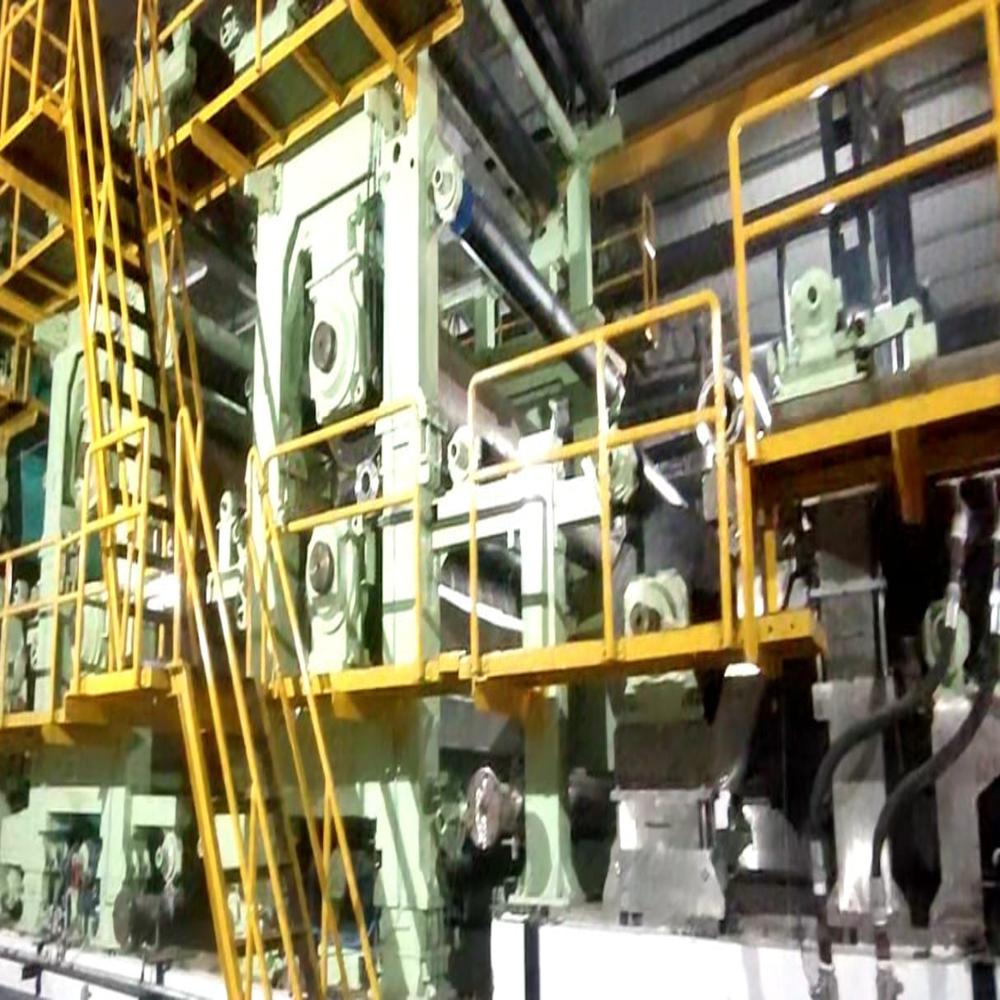

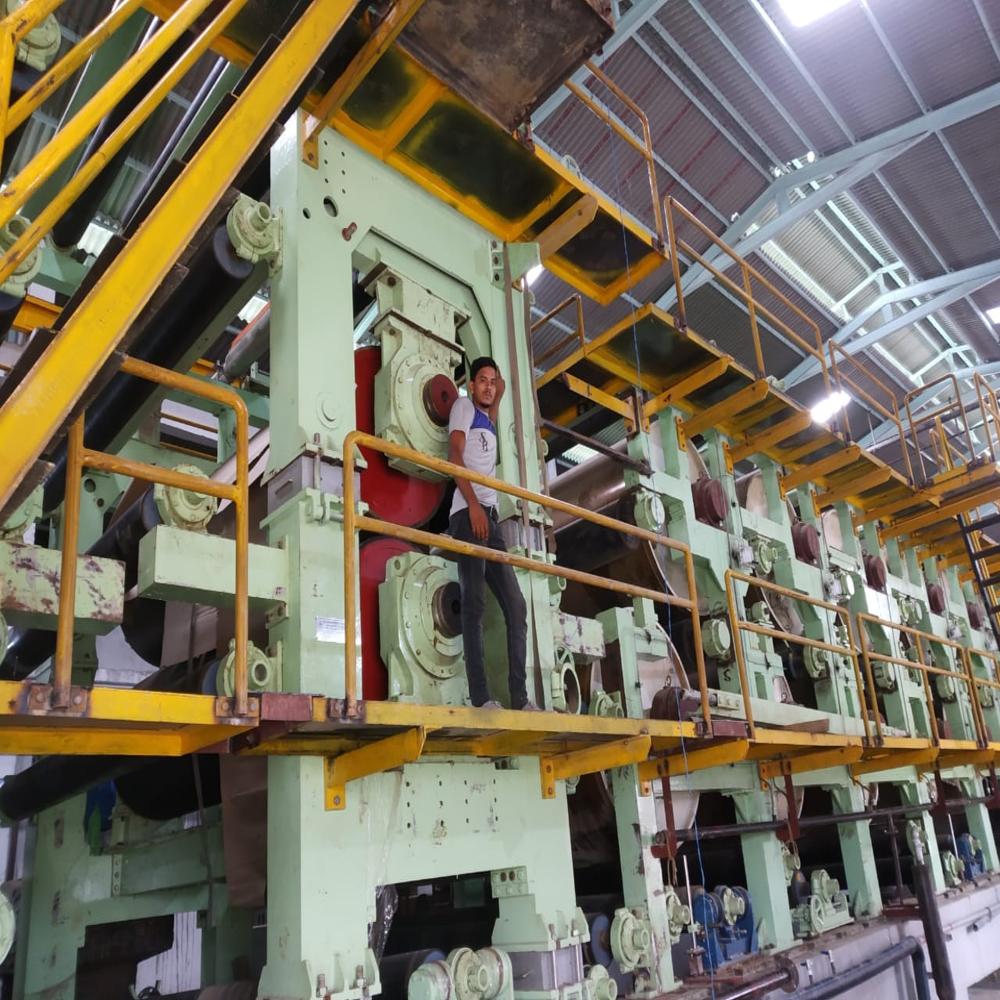

Jumbo Press Section Paper Machine

Price 3000000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Jumbo Press Section Paper Machine Specification

Grade
Industrial Heavy Duty

Type
Paper Machine with Water Cooling, Press Section

Material
High-strength Steel, Stainless Steel Components

Capacity
40-400 TPD (Tons Per Day)

Computerized
Yes

Control System
PLC based automated control

Cutting Speed
Up to 800 m/min

Cutting Size
Customizable, up to 3200 mm width

Cutting Thickness
1-15 mm (varies by design)

Voltage
380V / 415V, 3 Phase, 50Hz

Power
160-400 kW (depends on configuration)

Weight (kg)
Approx. 10000-25000 kg (varies by model)

Dimension (L*W*H)
Customized (example: 35000 mm x 5000 mm x 4000 mm)

Color
Industrial Green, Custom options available

After Sales Service
24/7 technical support available

Operating Pressure
Up to 1.2 MPa

Installation Support
On-site Installation & Commissioning Provided

Automation Level
Fully-Automatic, Optional Remote Monitoring

Sheet Formation Quality
High Uniformity and Smoothness

Noise Level
<80 dB(A) at 1 meter

Drying Section Integration
Compatible with Multi-Zone Dryer Cylinders

Application
Kraft Paper Manufacturing, Duplex Board, Carton Paper

Roller Material
High-precision Cast Iron with Water Cooling Jackets

Water Cooling System
Integrated, automatic temperature regulation

Jumbo Press Section Paper Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Jumbo Press Section Paper Machine

JUMBO PRESS SECTION

1. DESCRIPTION

The Jumbo Press Section is designed for efficient water removal from the paper web through high-pressure mechanical pressing. It is specially engineered to improve paper dryness, enhance production efficiency, and reduce the steam consumption in the dryer section.

The press section is equipped with heavy-duty press rolls, a robust frame structure, and a specially designed water-cooled roll arrangement to ensure reliable performance and consistent paper quality.

2. TECHNICAL FEATURES

Heavy-Duty Construction: Robust M.S. fabricated frame designed to withstand high nip pressure and continuous operation.
High-Pressure Pressing: Specially designed press rolls provide uniform nip pressure for efficient water removal.
Water-Cooled Press Rolls: Specially designed rolls with an internal water-cooling arrangement to maintain stable operating conditions.
High Paper Dryness: Designed to achieve higher dryness after pressing, depending on furnish and operating conditions.
Improved Production: Efficient water removal helps increase machine productivity and reduce the load on the dryer section.
Felt Arrangement: Suitable felt arrangement with proper tensioning and guiding systems for smooth and continuous operation.
Heavy-Duty Bearings: Designed to support high loads and ensure smooth roll operation.

3. TECHNICAL SPECIFICATIONS

Description	Specification
Equipment	Jumbo Press Section
Application	Paper Machine
Suitable Paper Grades	Kraft, Test Liner, Writing & Printing Paper
Press Roll Diameter	9501500 mm
Linear Nip Load	180450 kg/cm
Drive Arrangement	Bottom Roll / Both Rolls
Press Roll Type	Blind Drilled / PU Drilled
Roll Cooling	Internal Water Cooling
Tri-Nip Loading	70350 kg/cm, as per design
Felt Tension	Approx. 6.5 N/mm
Paper Transfer	Suction Pickup Arrangement
Frame Construction	Heavy-Duty M.S. Fabricated

4. PERFORMANCE ADVANTAGES

Higher paper dryness after pressing, potentially up to 50%, depending on furnish and operating conditions.
Reduced moisture content entering the dryer section.
Reduced steam consumption and drying load.
Improved paper machine productivity.
Uniform pressure distribution across the paper web.
Improved operational efficiency and reduced energy consumption.

5. APPLICATION

The Jumbo Press Section is suitable for paper machines manufacturing Kraft Paper, Test Liner, Writing & Printing Paper, and other grades of paper. It is designed for high-capacity paper production with efficient water removal and reliable continuous operation.

6. DESIGN AND MANUFACTURING

The Jumbo Press Section is manufactured using heavy-duty materials and precision-engineered components to ensure high strength, operational stability, and long service life. The complete arrangement is designed according to the required paper machine specifications and operating conditions.

Explore the imposing Jumbo Press Section Paper Machine With Water Cooling, engineered for supreme performance in Kraft paper, duplex board, and carton production. Featuring high-precision cast iron rollers with exquisite water cooling jackets, this customizable solution delivers high sheet uniformity and smoothness. With an integrated, automatic temperature regulation and full PLC automation, expect reliable, quiet operation (<80 dB). The featured remote monitoring option, computerized controls, and on-site installation ensure a seamless commissioning process. Built from industrial-grade steel and stainless steel, it supports cutting speeds up to 800 m/min and capacities from 40-400 TPD. Ideal for manufacturers seeking efficiency, durability, and after-sales assurance.

Extra Features and Commercial Applications

The Jumbo Press Section Paper Machine With Water Cooling stands out with its integrated water cooling system, customizable cutting size, and fully-automatic PLC-based control. Its advanced automation, optional remote monitoring, and compatibility with multi-zone dryer cylinders maximize efficiency. Usage spans from robust Kraft paper mill lines to high-output duplex board and carton plants, making it perfect for high-demand commercial environments seeking featured performance and customizable solutions tailored to unique business requirements.

Domestic Market, Sample Estimates, and Certifications

Serving the supreme industrial market across India, this machine's domestic reach includes major paper manufacturers and converters. Samples are available on request, with freight and transportation estimates carefully coordinated to suit logistical needs. Certified for heavy-duty industrial use, customers can expect secure shipment and compliance with industry standards. The manufacturer also provides detailed documentation and supports installation, ensuring a smooth acquisition and setup process.

FAQ's of Jumbo Press Section Paper Machine With Water Cooling:

Q: How does the water cooling system enhance the operation of the Jumbo Press Section Paper Machine?

A: The integrated water cooling system automatically regulates roller temperatures, ensuring stable sheet formation, preventing overheating, and maintaining the exquisite uniformity and smoothness of the paper output.

Q: What customization options are available for cutting size and machine configuration?

A: The machine offers customizable cutting sizes up to 3200 mm width and thicknesses from 1 to 15 mm. Both the dimensions and features like automation level and color can be tailored according to your production requirements.

Q: When is on-site installation and commissioning provided?

A: On-site installation and commissioning are provided as part of the initial setup process after delivery, with trained specialists ensuring optimal configuration and operational readiness.

Q: Where can I request a sample or estimate freight and transportation costs?

A: Samples, detailed quotations, and freight or transportation cost estimates are available upon inquiry through the distributor or supplier. This allows you to review quality and plan logistics before purchase.

Q: What main benefits does the fully-automated, PLC-controlled system offer?

A: The fully-automated, PLC-based control system provides supreme operational efficiency, minimal manual intervention, improved safety, and enhanced process consistency, resulting in higher productivity and reduced downtime.

Q: How does the machine's sheet formation quality impact the final product?

A: High uniformity and smoothness in sheet formation ensure superior paper quality, making the output ideal for demanding applications in packaging and printing industries.
